Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
IAM-PT00011-01

IAM-PT00011-01

Application QFN / QFP / LGA

Height 2.9mm / 3.3mm (Test / Rest)

Working Spring Force 31gf@0.40mm

Recommended Travel 0.4mm

Temperature -40~125℃

Tip (device side / PCB side) Crown / Cone
/
詳細介紹

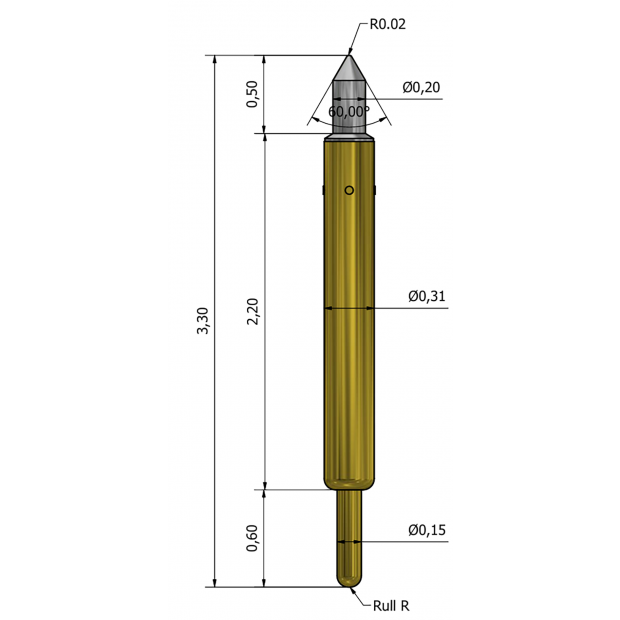

    Mechanical
    Application QFN / QFP / LGA
    Height 2.9mm / 3.3mm (Test / Rest)
    Working Spring Force 31gf@0.40mm
    Recommended Travel 0.4mm
    Temperature -40~125℃
    Tip (device / PCB) Crown / Cone

    Electrical
    Current capacity : 2A
    Self-inductance : 0.85nH
    Parasitic capacitance : 0.45pF
    DC Resistance < 60 mΩ (Average)
    Bandwidth@-1dB : 16.5GHz

    Insertions
    Cycle life > 500K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy
    Barrel : PBT / Au plated
    Spring : SWP / Au plated
    Bottom : BeCu / Au plated
