Mechanical
Application QFN / QFP / LGA

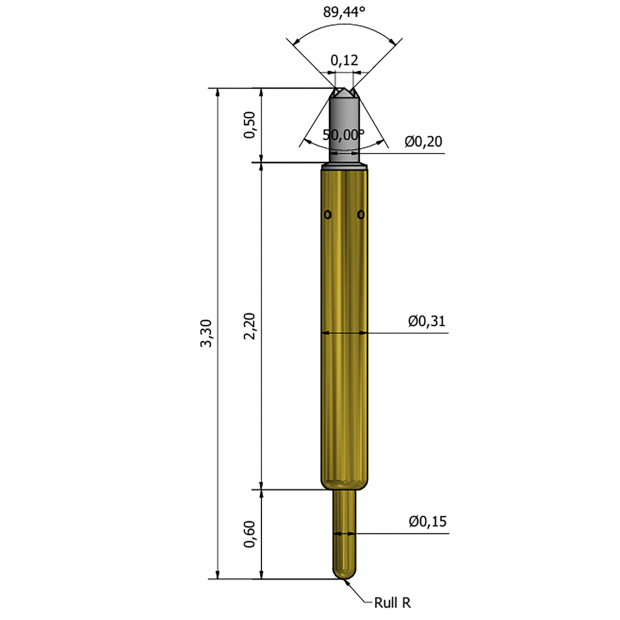

Height 2.9mm / 3.3mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 31gf@0.40mmPitch Range (MIN.) 0.4mm
Recommended Travel 0.4mm
Temperature -40~125℃
Tip (device / PCB) R Crown / Cone
Electrical
Contact resistance < 80 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
