Mechanical
Application LGA / WLCSP

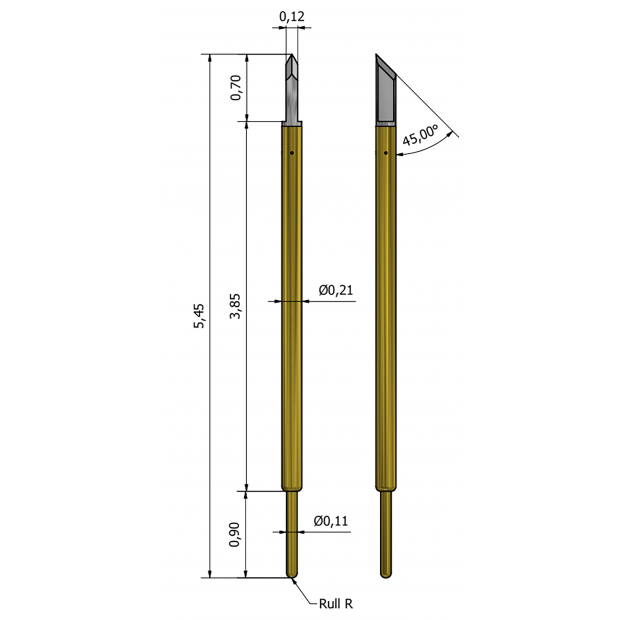

Height 4.95mm / 5.45mm (Test / Rest)
Pitch Range (MIN.) 0.35mmWorking Spring Force 13.3gf@0.50mm
Recommended Travel 0.50mm
Temperature -55~120℃
Tip (device / PCB) Kelvin / Cone
Electrical
Contact resistance < 120 mΩ
Current Carrying Capability 1.5A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : Nickel / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
