Mechanical
Application LGA / WLCSP

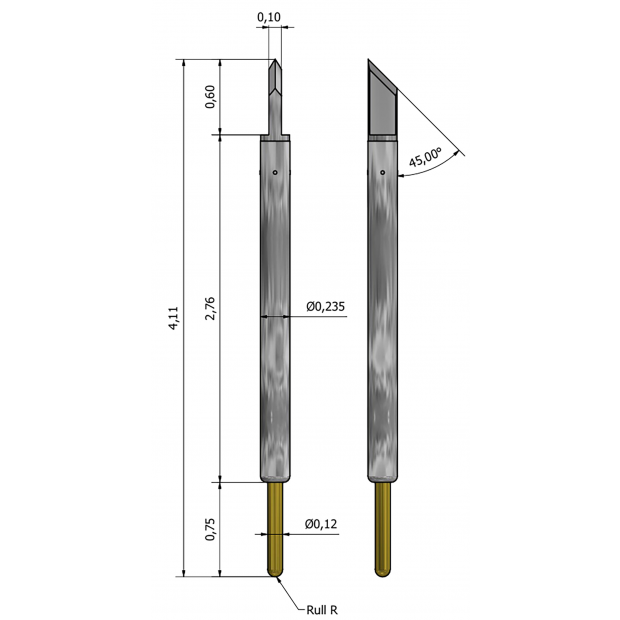

Height 3.66mm / 4.11mm (Test / Rest)
Pitch Range (Min.) 0.35mmWorking Spring Force 16gf@0.45mm
Recommended Travel 0.45mm
Temperature -55~120℃
Tip (device / PCB) Sarp Kelvin end / Cone
Electrical
Self-Loop Inductance 0.53nH
Mutual Capacitance 0.57pF
Banwidth @-1dB 10 GHz
Contact resistance < 120 mΩ
Current Carrying Capability 1.5A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : NiEF
Spring : SWP / Au plated
Bottom : Pd Alloy / Au plated
